Product name	"CY" Flat Bed CNC Lathe
Performance of work table	----
Longitudinal movement table (No paragraph table speed)	----

Lathe Features
CY-K360/CY-K500(T)/CY-K660(T) Flat bed CNC lathe
★ Broad lathe foot together with trapeziform section lathe bed, suitable for heavy cutting and finish machining.
★ Independent spindle, separate with gear box. Temperature increasing lower and small distortion caused by heat.
★ Top window ensure lights come onto work piece, and easy for operator to supervise the turning process.
★ Bottom of tailstock with discharging device.
★ Spindle motor can choose frequency conversion motor and servo motor.
★ Cutting with Constant Surface Speed(CSS).

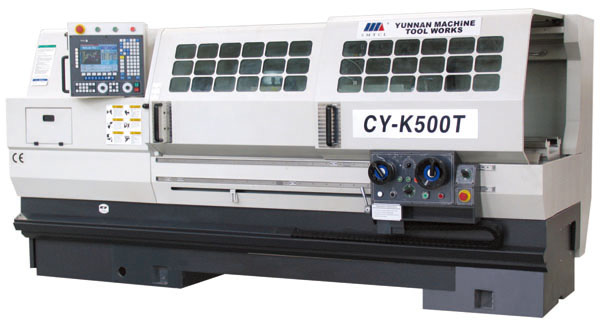

CY-K500T/CY-K660T CNC electronic handwheel lathe
★ CY-K500T/CY-K660T are designed from CY-K500/CY-K660, with Teach-in function.
★ X, Z electronic handwheel can be operated to fulfill convention lathe function.

Special characters for CY-K660
★ Double-triangle guide way.
★ One piece cast iron base

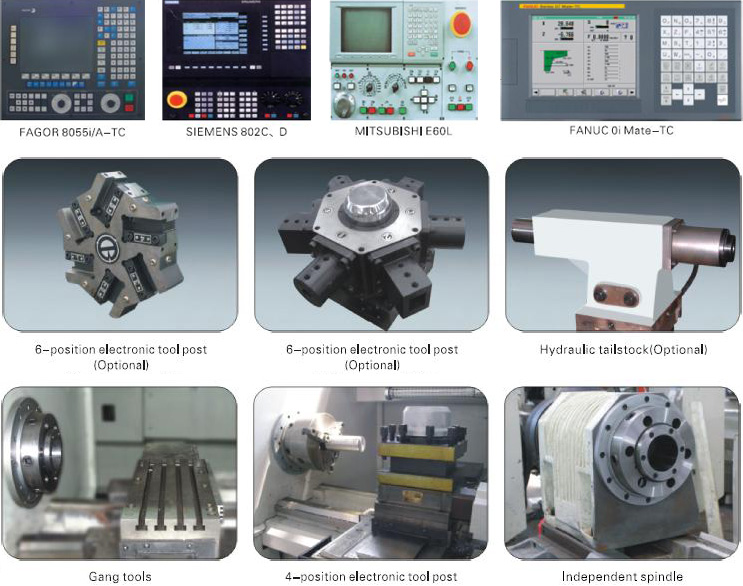

Standard accessories:	Optional accessories:
1. 250mm manual 3-jaw chuck 2. Manual tailstock 3. 4-position electronic tool post 4. Heat exchanger 5. Lubrication pump 6. Illumination lamp 7. Center & Center sleeve 8. Full set of wrenches & Screw drivers 9. Foundation bolts	1. 250mm hydraulic 3-jaw chuck 2. Hydraulic tailstock 3. 6-position electronic tool post 4. Air conditioner 5. Steady rest & Follow rest 6. Damping cushion 7. Driving plate
