Product name	"CY" Gap-Bed Lathe
Performance of work table	----
Longitudinal movement table (No paragraph table speed)	----

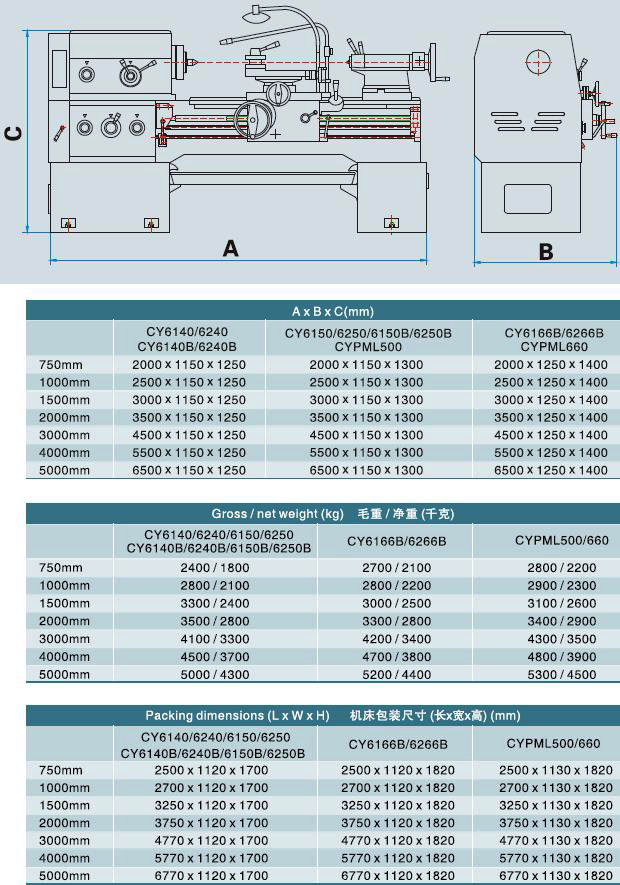

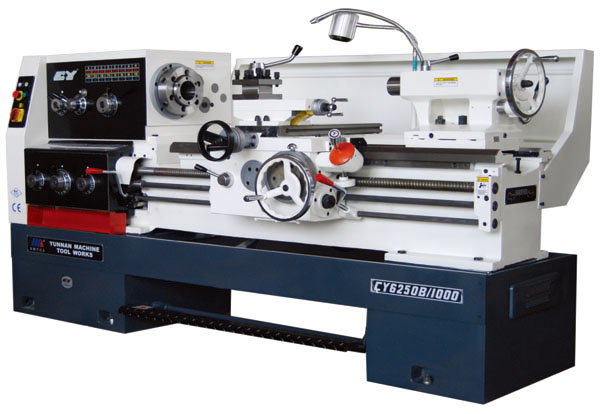

型号：CY-L1630/40/60G SERIES HIGH SPEED GAP-BED LATHE

Lathe Features
★ High rigidity spindle system, with absolute temperature rising no higher than 35℃.
★ The headstock, gear-box, apron and bed-ways are made of high quality cast iron, and are all cast with the resin sand foundry technology. The bed ways are induction-hardened, with hardness around HRC 55.
★ The spindle supported by 3-pointed high-precision bearings and all gears in headstock are precisely grinded, the spindle turns smoothly at high speed.
★ Rapid feed system to improve efficiency. Wide range of feed and pitch are available without changing gears.
★ When rapid feeding is on, the tool slide longitudinal travel handwheel will be automatically disfunctioned.
★ Reliable safety devices such as footbrake and emergency power-off switch are assembled. Adjustable overload protection device is also installed in the feed system.
★ The tool post adopts the structure of ratchet pawl, and can be relocked by turning the lever for just half a lap.
★ Tailstock are equipped with double-locked mechanism, smooth and effortless movement is ensured by the elastic scroll devices underneath.
★ With capacity of swing over bed 660mm, swing in gap 830mm, distance between centers 1000 – 5000mm, this lathe covers wide range of working pieces.

Standard accessories:
1. 3-jaw chuck
2. Chip guard
3. Foot brake
4. Coolant system
5. Illumination system
6. Operation manual
7. Full set of wrench and screw driver

Optional accessories:
1. 4-jaw chuck
2. Face plate
3. Drive plate
4. Steady rest
5. Follow rest
6. Thread chasing dial
7. Live center
8. Center
9. Center sleeve
10. Chuck cover
11. Taper turning attachment(TTA)
12. Micro stop for saddle
13. 4-position stop for saddle
14. 4-position stop for cross slide
15. Quick change tool post
16. Halogen work lamp
17. Digital readout(DRO)
18. Damping washer
19. Foundation bolts
20. CE standard compliance

Specification/Model	6140	6240	6150	6250	6140B
Swing over bed	400mm	400mm	500mm	500mm	400mm
Swing over cross slide	220mm	220mm	300mm		220mm
Distance between centers	750/1000/1500/2000/3000/4000/5000 mm
Swing in gap		630mm		710mm
Width of gap		240mm		240mm
Width of bed	390mm
Spindle nose	C6				D8
Spindle bore diameter	52mm				82mm
Morse taper of spindle center	M6				1:20
Spindle speed	9-1600rpm(24 steps)
Max output torque of spindle	150N.m
Range of longitudinal feed	0.028-6.43mm/rev
Range of cross feed	0.12-2.73mm/rev
Lead screw pitch	12mm(metric system) 2TPI (inch system)
Metric threads	0.5-224mm(48 pitches)
Inch system threads	72-1/8TPI(46 pitches)
Module threads	0.5-112mm(42pitches)
Diameter pitch threads	56-1/4DP(45 pitches)
Cross slide travel	320mm
Top slide travel	145mm
Section specification of tool post	25×25mm
Longitudinal rapid traveling speed	4.5m/min (50HZ) 5.4m/min(60HZ)
Transversal rapid traveling speed	1.9m/min (50HZ) 2.3m/min(60HZ)
Morse taper of tailstock center	M5
Max travel of tailstock quill	150mm
Tailstock quill diameter	75mm
Main motor	7.5kw
Rapid travel moter	250w 1360rpm
Coolant pump motor	90w 25L/min

Specification/Model	6240B	6150B	6250B		6166B	6266B
Swing over bed	400mm	500mm			660mm
Swing over cross slide	220mm	300mm			430mm
Distance between centers	750/1000/1500/2000/3000/4000/5000 mm
Swing in gap	630mm		710mm			870mm
Width of gap	240mm		240mm			240mm
Width of bed	390mm
Spindle nose	D8
Spindle bore diameter	82mm
Morse taper of spindle center	1:20
Spindle speed	9-1600rpm(24 steps)
Max output torque of spindle	150N.m
Range of longitudinal feed	0.028-6.43mm/rev
Range of cross feed	0.12-2.73mm/rev
Lead screw pitch	12mm(metric system) 2TPI (inch system)
Metric threads	0.5-224mm(48 pitches)
Inch system threads	72-1/8TPI(46 pitches)
Module threads	0.5-112mm(42pitches)
Diameter pitch threads	56-1/4DP(45 pitches)
Cross slide travel	320mm			360mm
Top slide travel	145mm			170mm
Section specification of tool post	25×25mm
Longitudinal rapid traveling speed	4.5m/min (50HZ) 5.4m/min(60HZ)
Transversal rapid traveling speed	1.9m/min (50HZ) 2.3m/min(60HZ)
Morse taper of tailstock center	M5
Max travel of tailstock quill	150mm
Tailstock quill diameter	75mm
Main motor	7.5kw			11kw
Rapid travel moter	250w 1360rpm
Coolant pump motor	90w 25L/min
